Leascend Photovoltaic Heterojunction Technology Co. LTD

Leascend PV
is created for HJT cells

Leascend PV
Builds a sunshine future with intelligent manufacutring

Join Leascend
Growing together with new stars in the photovoltaic industry

Leascend Photovotaic Technology Co.,Ltd

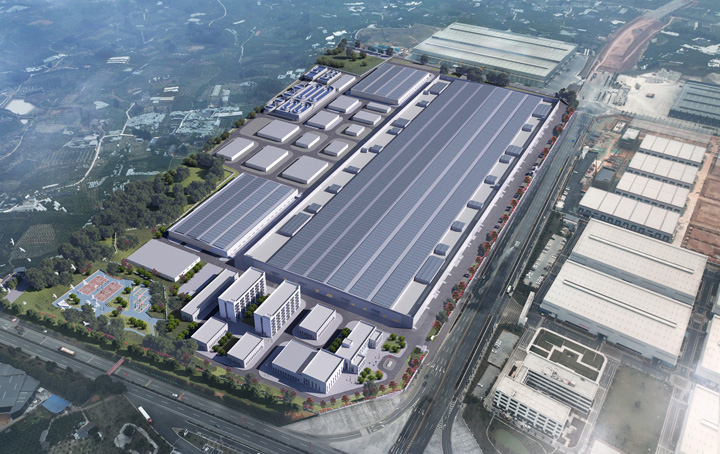

Leascend Photovoltaic Technology Co., Ltd (hereinafter referred to as “Leascend Photovoltaic”) founded in January 2023, is located in Economic Development Zone A, Danling County, Meishan City, Sichuan Province, in the core area of China's Green Silicon Valley (Leshan-Meishan). It is an innovation technological enterprise specializing in development and application of high-efficiency heterojunction (HJT) Solar cell technology, as well as large-scale manufacturing.

Learn More

Leascend

Learn More

$0.63 <Billion>

Total Investment

$1.04 <Billion>

Estimated Annual Revenue

1,500 <+>

Headcounts

25.5 <%>

N-type-HJT Efficiency

HJT Technology

The heterojunction battery series products have the characteristics of high conversion efficiency, low temperature coefficient, high double-sided rate, and no PID/LID attenuation. They adopt a double-sided microcrystalline process, which has higher battery conversion efficiency and performance, and are compatible with various battery graphics (such as 12BB/15BB/18BB and OBB) products.

Learn More

Learn More

Wafer type: N-type monocrystalline silicon wafer
Size: 210 * 105 ± 0.25mm
Thickness: 120 ± 15μm
Max. Power of Half Piece: 5.61W
Max. Efficiency: 25.50%

Learn More

Leascend Uranus G12-SMBB Module

Learn More

Leascend Uranus G12-0BB Module

Learn More

G12-0BB HJT Solar Cell

Wafer type: N-type monocrystalline silicon wafer<br>Size: 210 * 105 ± 0.25mm<br>Thickness: 120 ± 15μm<br>Max. Power of Half Piece: 5.61W<br>Max. Efficiency: 25.50%

Learn More

Advantages of HJT Solar Cell

Higher Power Conversion Efficiency

HJT solar cell uses amorphous silicon thin films as passivation materials to reduce the loss of minority carriers lifetime in contact area, which could increase the open circuit voltage of HJT cells to 750mV and guarantee the power conversion efficiency up to 25% at the beginning. With bifacial microcrystals can further improve the doping efficiency and transmittance of the thin films, improve current density, and thereby improve cells conversion efficiency up to 25.2%.

Thinner Wafer Adapted

The manufacturing process of HJT solar cell is simplified comparing with conventional solar cells, with low temperature process, its natural bifacial symmetrical structure have reduced the mechanical stress in cell production, which enable to realize a thinner wafer ( ≤120um). Combining with SMBB technology and 0 Busbar technology, the conversion efficiency can be further improved and costs reduced.

Lower Power Degradation Rate

HJT solar cells is made of N type silicon wafer, which does not have B-O bound, resulting in no LID effect, guarantee long term durability. As anti-reflection and protective layers, TCO film is conductive, so the charge won’t polarize on the surface, avoiding PID from the structure.

Lower Temperature Coefficient

Temperature coefficient is one of the important parameters of PV modules, which will affect the power generation of the modules. HJT solar cell temperature coefficient is -0.26%, only half of the temperature coefficient comparing with crystalline silicon cells -0.45%. So HJT has a greater advantage in high temperature, high irradiation area. In the case of summer hot climate, HJT generates 6% more power than conventional monocrystalline cells, and 3% more power than TOPCON cells.

Higher Bifacial Rate

HJT solar cell has natural bifacial symmetric structure, and the bifacial rate is more than 95% on average, which could be adapted to different application scenarios, and gain more power output.

Ultra-low Carbon Footprint

HJT solar cell have a Simplified process flow, low manufacturing temperature, high power conversion efficiency, and adopt a thinner wafer, which enable to reduce energy consumption and achieve a lower carbon footprint.
